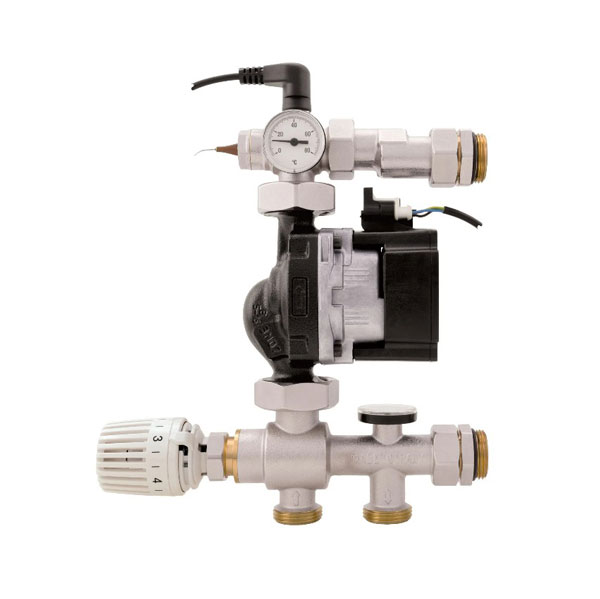

Fixed Point Underfloor Mixer Unit
ITAP
- SKU #:UFMM1MP
Description
-
Medium: water, glycol solution (up to 30%)
-
Control temperature range: 20°C to 55°C
-
Maximum operating pressure: 6 bar
-
Regulating unit materials: Nickel-plated brass CW617N
-
Available sizes: 1”
-
Threaded connections: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
-
Kv (mixing valve only): 7,50 m3/h
-
Centre distance (pump): 130mm.
-
Threaded connections (pump): 1”1/2
- Includes unions to enable easier installation
